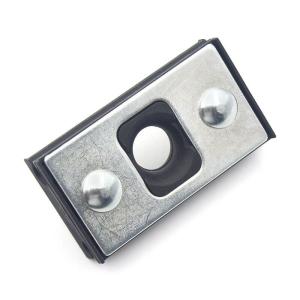

FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation

Name: FTTH Figure8 Cables Suspension Clamp Hot Dip Galvanized For Installation
Brand: DOWELL
Price: 1 USD

Wholesale FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation from china suppliers

Payment Terms : T/T, Western Union, Paypal

Delivery Time : 7-15 Days

Place of Origin : Zhejiang, China

Brand Name : DOWELL

Model Number : DW-1096

Packaging Details : Normal Package

Supply Ability : 10000 PCS Per 7 Days

MOQ : 100 0pieces

Material : Hot Dip Galvanized

Color : Silver

Usage : Cable Fixing

Application : Overhead Line Accessories

Contact Now

FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation

The suspension clamps are designed to provide an articulated suspension for figure-8 cables with steel or dielectric insulated messenger on access network with spans up to 90m. Its unique patented design has been developed to offer an universal hardware fitting covering all suspension cases on wooden, metal or concrete poles. With straight grooves and a reversible system, these clamps are compatible with messengers diameters from 3 to 7mm and 7 to 11mm.

Specification:

Material	Hot Dip Galvanized	Color	Silver
Usage	Cable Fixing	Application	Overhead Line Accessories

Feature:

1.1 Covers all messenger sizes from 3 to 11mm

1.2 Acts as a fuse to avoid damage on the cable in case of abnormal vertical overload (tree, car crash ...)

1.3 4kV dielectric insulation between the cable messenger and the pole/clamp

1.4 Central hole allowing installation on hooks so to provide a flexible suspension point and give extra protection against wind induced vibrations

Installation:

2.1 On a hook bolt

The clamp can be installed on a 14mm or 16mm hook bolt on drillable wooden poles. The length of the hook bolt depends on the pole diameter.

2.2 On a pole bracket with a hook bolt

The clamp can be installed on wooden poles, round concrete poles and polygonal metallic poles by using a suspension bracket CS, a hook bolt BQC12x55 and 2 pole bands 20 x 0.4mm or 20 x 0.7mm.

FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation

Our Package:

Production Flow:
